Name: DC53 Thread Rolling Dies for Self Tapping Screw Making Molds
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Personalizzato
Price: 250.00 USD
Availability: InStock

Casa. > prodotti > Carburo colpisce e muore >

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

DC53 thread rolling dies

self tapping screw molds

carbide thread rolling dies

Luogo di origine:

Chongqing, Cina

Marca:

Henghui

Numero di modello:

Personalizzato

Contattaci

Chiedi un preventivo

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

Dettagli del prodotto

Modalità di modellatura:

Morire casting

Materiale del prodotto:

DC53

Tipo di materiale:

HSS

Personalizzazione delle dimensioni:

Il disegno del cliente

Tipo di morire:

A/b

Composizione materiale:

DC53+N o H9+N.

Composizione chimica:

C: 0,95%, Si: 0,89%, MN: 0,3%, P: 0,018%, S: 0,006%, CR: 7,7%, MO: 1,92%, V: 0,75%, W: 0,91%

Tipo di macchina:

Varie dimensioni (EG, 0, 3/16, 1/4, 5/16, 3/8, 1/2, 3/4)

Intervallo di lunghezza:

15-230mm

Intervallo di altezza:

20-150 mm

Gamma di spessore:

25-265mm

Diviazione relativa:

≤0.005mm

Concentricità:

≤0,01 mm

Prova di durezza:

tester di durezza di Rockwell

Precisione di misurazione:

Strumento di misura dell'immagine 3D

Termini di pagamento e di spedizione

Quantità di ordine minimo

PRODOTTI RELATIVI

High Precision Carbide Die for Screw Extrusion Mould

Ottenga il migliore prezzo

Custom Hex Trimming Die Carbide CVD Coating Industrial Mold

Ottenga il migliore prezzo

Custom Tungsten Carbide Die Mold for Nuts M12-M20 Forging Mould

Ottenga il migliore prezzo

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

Ottenga il migliore prezzo

Contattaci

+8613983025528

hou@citool.com

86-023-60338218-60338218

Contatta ora

Descrizione del prodotto

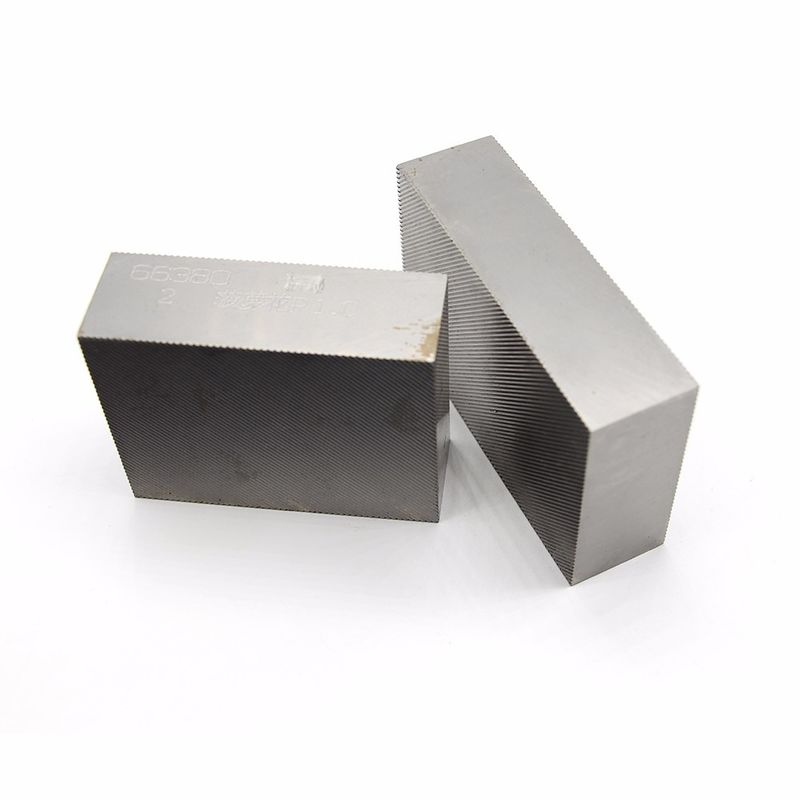

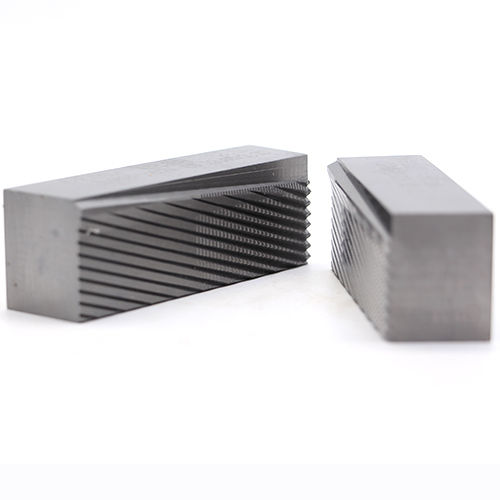

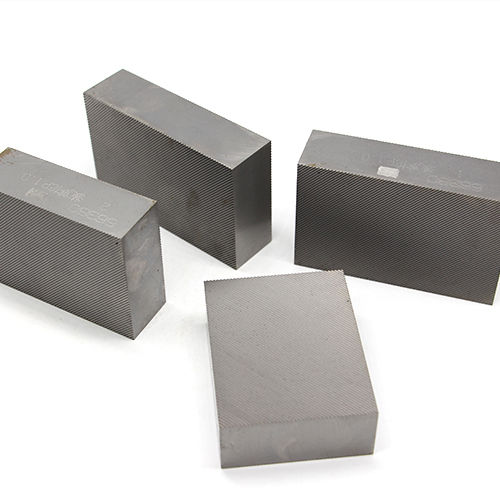

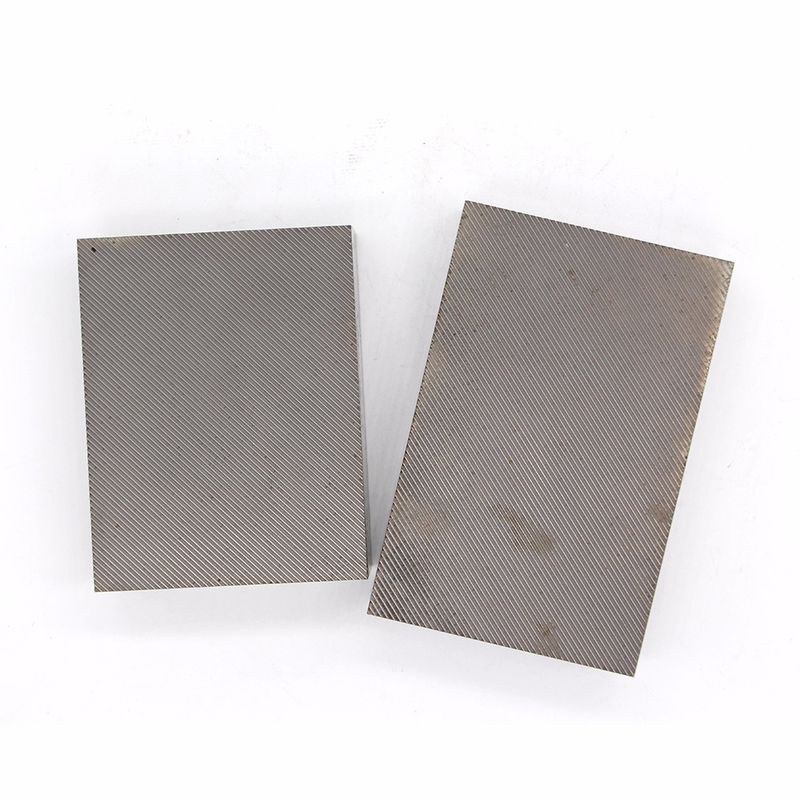

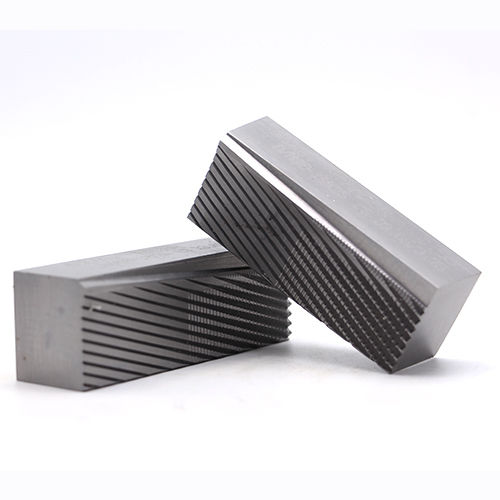

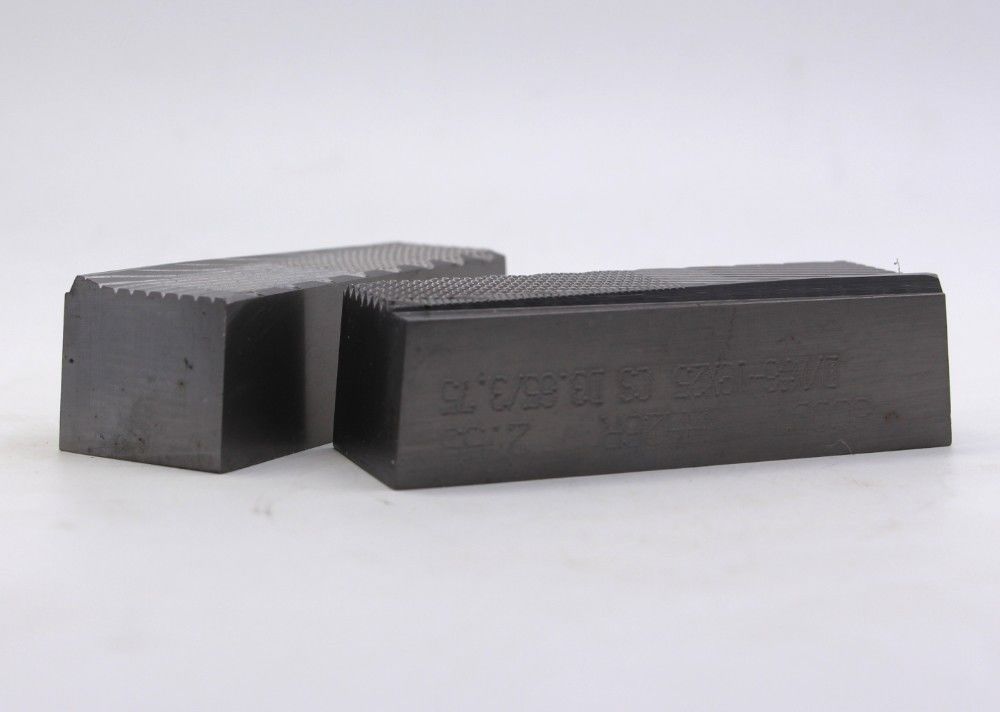

Henghui Self Tapping Screw Making Molds Thread Rolling Dies Plate DC53+N

Product Specifications

Attribute	Value
Shaping Mode	Die Casting
Product Material	DC53
Product	SCREW, Thread Rolling Dies
Product name	Screw Making Molds Thread Rolling Dies Plate HSS
Material	HSS
Size	Customer's Drawing
Certificate	ISO9001:2015
Type	A/B
Service	Customized OEM
Usage	For making screws
Packing	Carton

Product Description

Material Specifications

Our main case materials are DC53+N or H9+N

Size

Length*Height*thickness (for example, 90/105x25x25mm)

DC53 Chemical Composition

Element	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.95	0.89	0.3	0.018	0.006	7.7	1.92	0.75	0.91

Machine Type Specifications

MACHINE TYPE	S	H	L1(FIXED)	L2(MOVING)
0	19	25	51	64
3/16	25	25,38,55	75	90
1/4	25	25,40,55,65,80	100	115
5/16	25	25,40,55,65,80,105	127	140
3/8	25	25,40,55,65,80,105	150	165
1/2	35	55,80,105,125,150	190	215
3/4	38	55,80,105,125,150	230	265
003	15	20	45	55
004	20	25	65	80
4R	20	25	60	70
6R	25	25,30,40,55	90	105
8R	25	25,30,40,55,65	108	127
250	25	25,40,55	110	125
DR125	20.8	25,40	73.3	86.2 (5。）
DR200	20.8	25,40,53	92.3	105.2 (53)
DR250	23.8	25,40,54	112	131.2 (Í)

Product Features

Henghui specializes in manufacturing high-quality screw thread rolling dies using premium raw materials. Our engineers professionally design each die according to customer specifications, ensuring:

High accuracy and dimensional stability
Exceptional strength and durability
Extended service life compared to competitors
Compatibility with most threading machines
Custom solutions for specialized applications

We offer comprehensive technical support and can advise on the optimal thread rolling die for your specific requirements. Contact us with your technical inquiries for a response within 24 hours.

Manufacturing Capabilities

Chongqing Henghui Precision Mold Co., Ltd. operates with advanced CNC equipment and strict quality control:

CNC lathes and machining centers
Precision grinding and EDM machines
Comprehensive testing equipment including hardness testers and 3D measuring instruments
ISO9001:2015 certified quality management
Dimensional accuracy within 0.005mm
Concentricity control within 0.01mm
